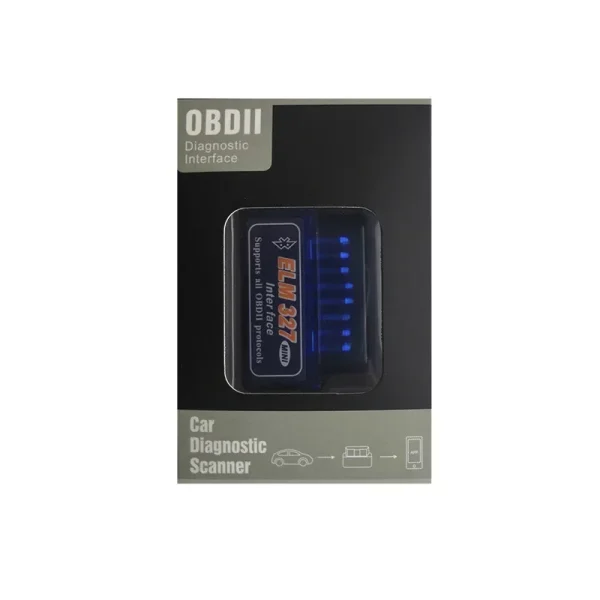

მინი Bluetooth ELM327 V2.1 V1.5 ავტომატური OBD სკანერი კოდის წამკითხველი ინსტრუმენტი მანქანის დიაგნოსტიკური ინსტრუმენტი
Price range: ₾7.52 through ₾7.66
382 in stock
Ordered: 0
Items available: 382
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
მიწოდება
Apr 15 May 12
Description
Additional information
Reviews (0)
SPECIFICATIONS
Brand Name: NONE
Choice: yes
High-concerned chemical: None
Item Type: Code Readers & Scan Tools
Origin: Mainland China
origin: Mainland China
semi_Choice: yes
Features:
The newly developed high-quality wireless scan tool, support all OBD2 protocols.
Work with all OBD2 compliant vehicles.
Enable to read diagnostic trouble codes.

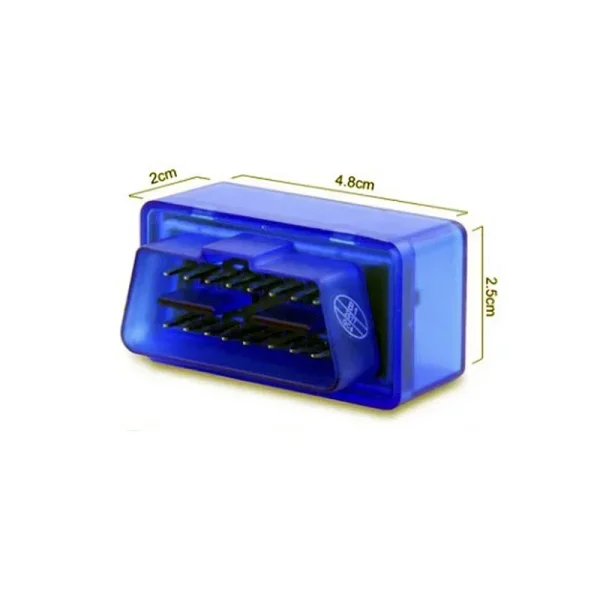

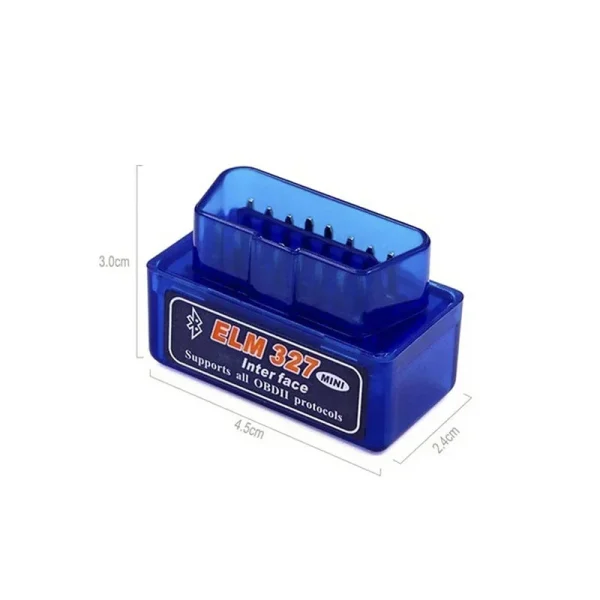

Small bluetooth interface with a 16 pin socket.

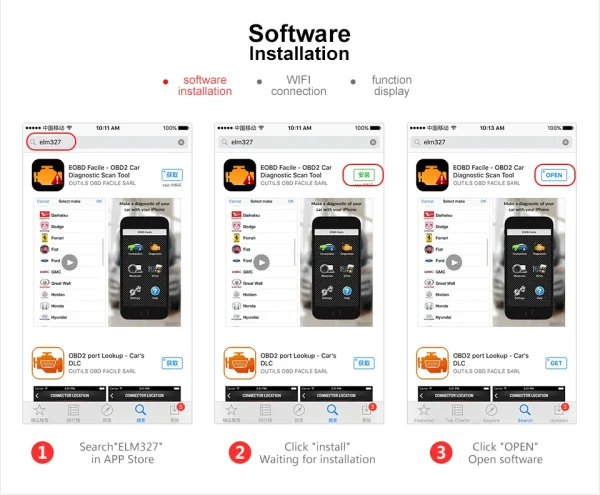

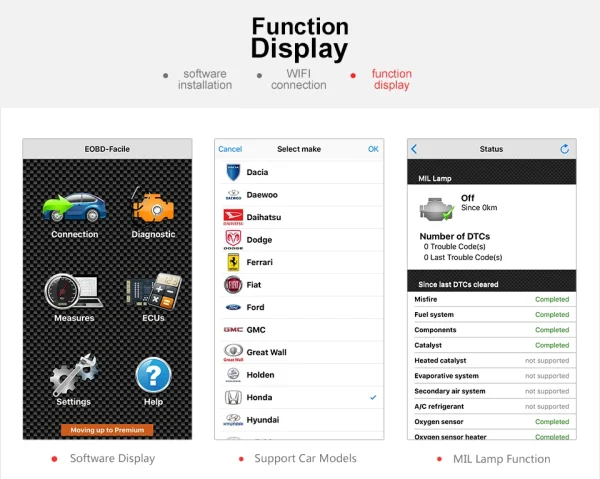

Support different kinds of devices to use this scan tool:

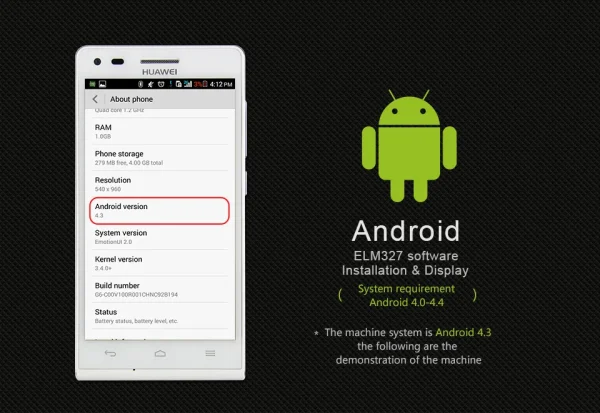

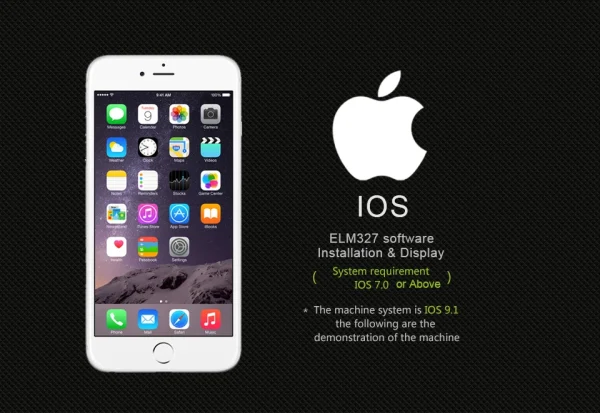

ios

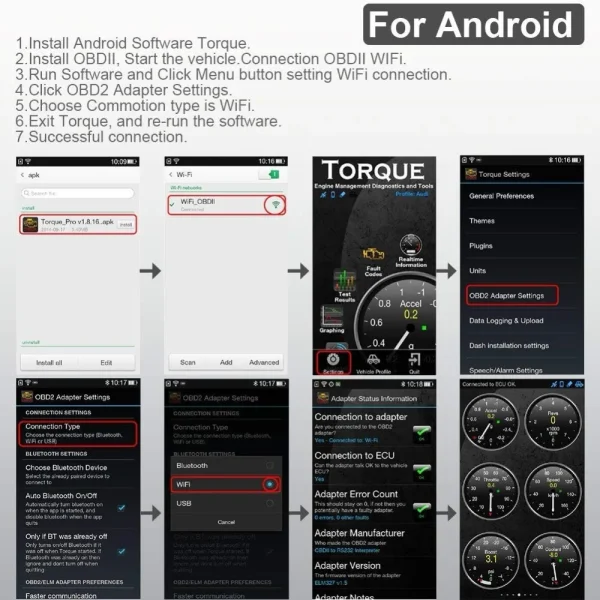

Android system phones(hardware V4.1-4.3), Symbian system phones,
Windows XP and WIN7 32bite computers.
With a switch to turn on/ off these indicator lights.
Functions:

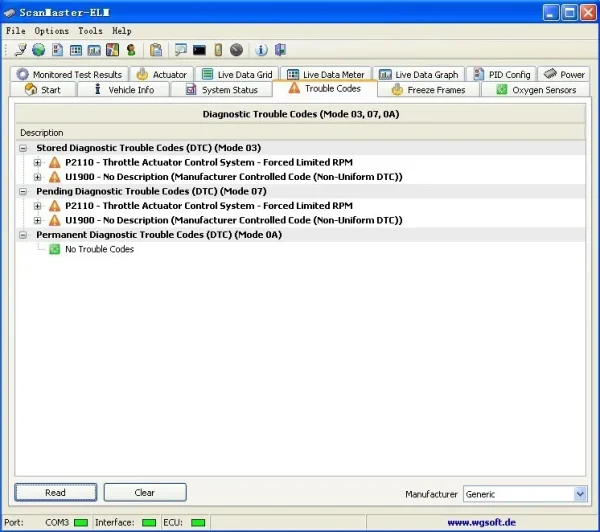

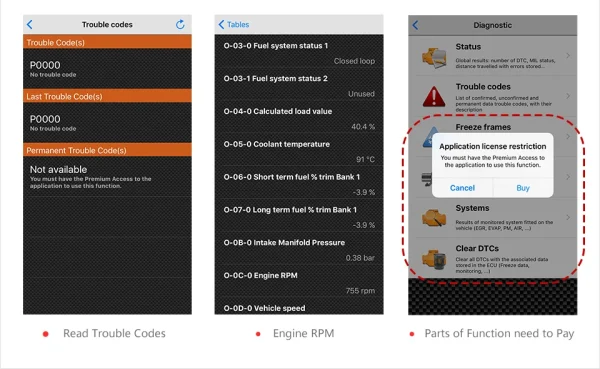

Read diagnostic trouble codes, both generic and manufacturer specific, and display their meaning (over 3000 generic code definitions
in the database).

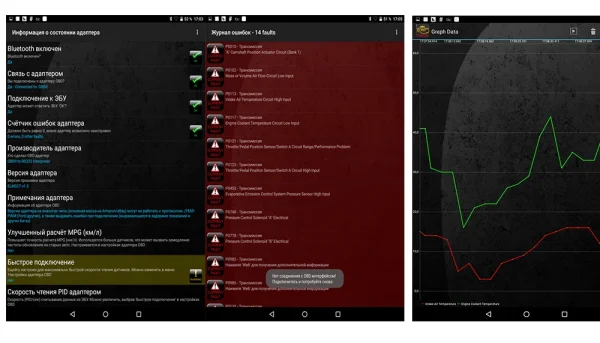

Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

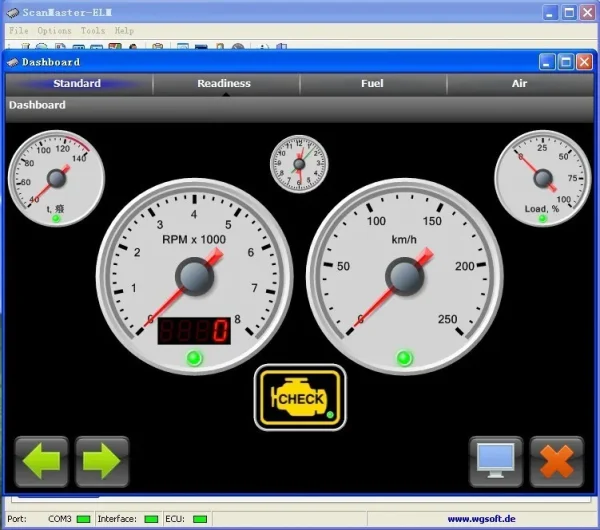

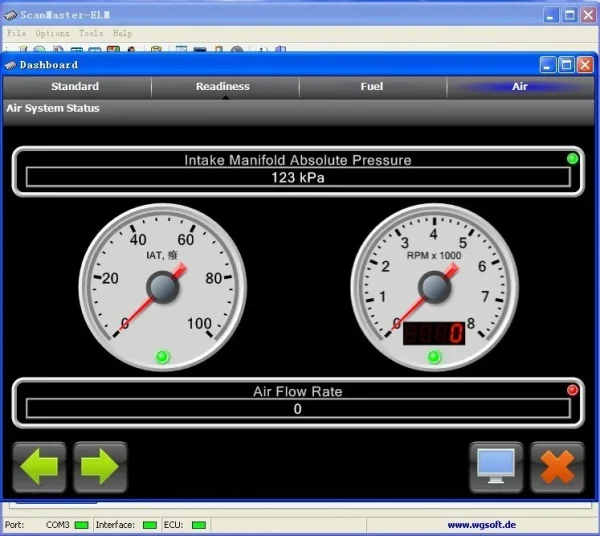

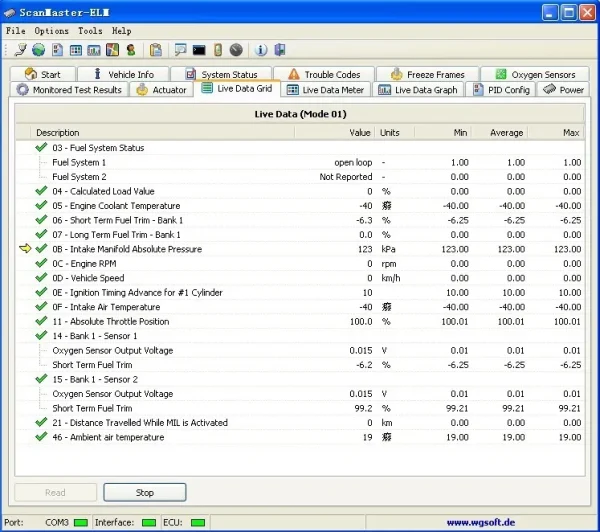

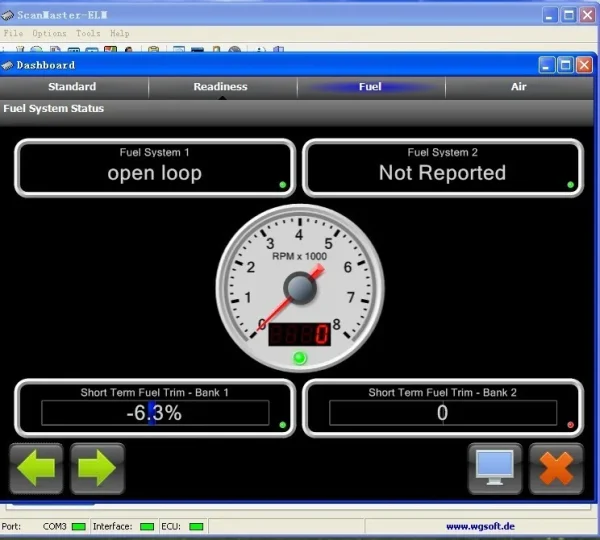

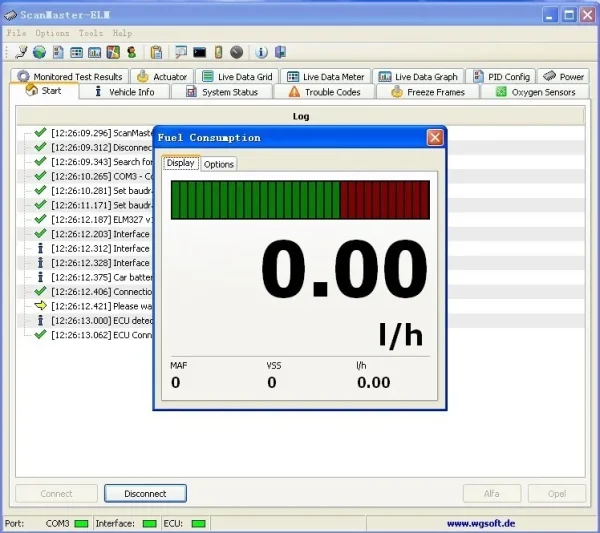

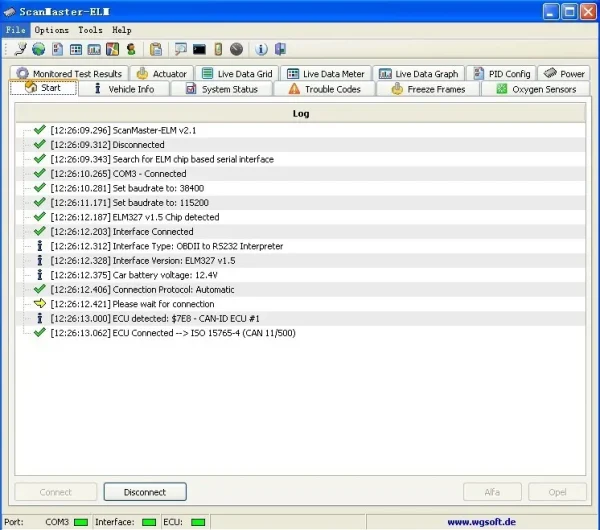

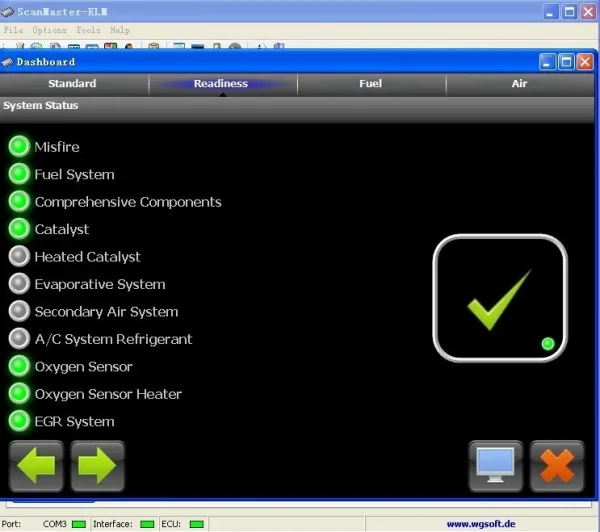

PC Show:
Protocols:
FOR V2.1:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
*default settings(user adjustable)
Output protocol: RS232
Baud rate: 38400
Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection from short circuits/
overvoltages
Nominal idle current: 45mA
Packing List:

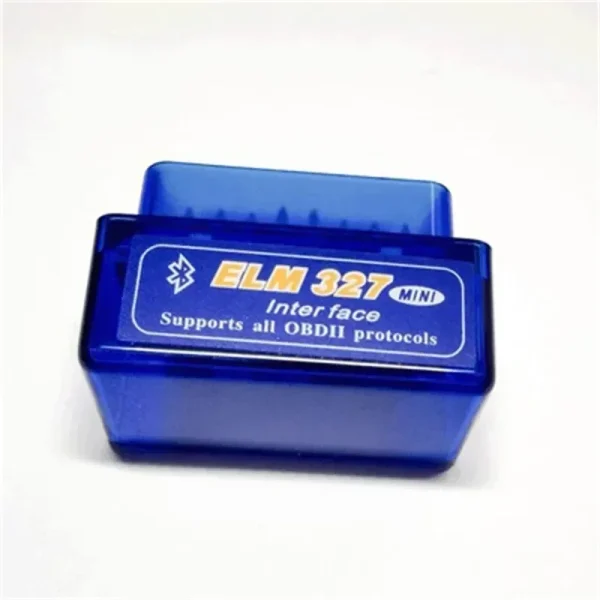

1 * ELM327 OBD2 bluetooth diagnostic interface V2.1
1 * CD-ROM OBD-II
If any questions, please feel free to contact with the seller, please never open a dispute before contact with the seller. Let's keep good business relationship. Thanks!!

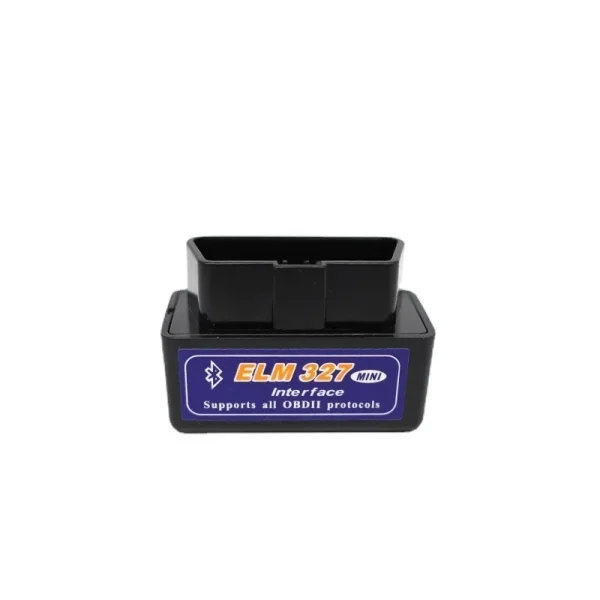

| Color | Blue V1.5, Blue V2.1 |
|---|
